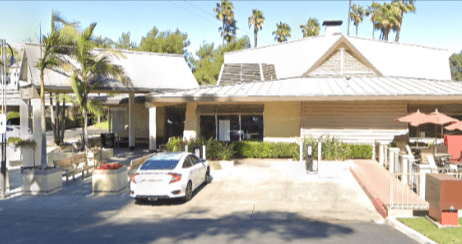

S3DA Design is providing full structural and electrical design services for a Tesla Supercharger installation in San Diego, CA. The scope includes engineering calculations, foundation design, anchorage verification, and electrical power distribution to support exterior EV charging equipment in a high seismic region.
Structural Design Scope
- Loading analysis including Dead, Live, Wind, and Seismic loads for Supercharger cabinets, utility transformers, and electrical equipment
- Structural analysis and design of new concrete equipment foundations, including overturning, sliding, and uplift checks
- Anchorage and embedment verification in accordance with CBC and ASCE 7
- Construction-ready drawings including:
- Foundation plans for Supercharger cabinets and transformers
- Foundation sections and anchorage details
- Typical structural details, notes, and specifications suitable for CD-90 / CD-100 submittals
Electrical Design Scope
- Design of new or utilization of existing utility electrical service
- Power distribution design from utility transformers to main distribution boards, sub-distribution, and branch circuit panels
- Complete electrical drawing set for the integration of Tesla Supercharger equipment
This project reflects our continued commitment to delivering reliable, code-compliant engineering solutions for EV charging, utility infrastructure, and clean energy projects throughout California.
